Vehicle Exploded View - MOTO-GUZZI SPORT 1200 8V 2008-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

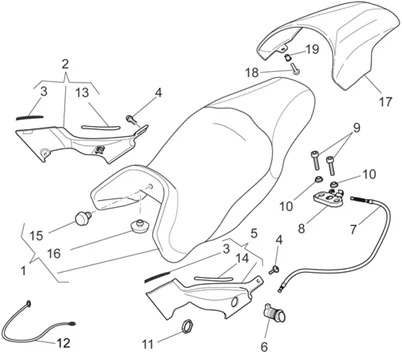

Chassis : 33.18 SELLE-CARROSSERIE CENT.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_33.18.PNG)
1 |
886986 - SELLA BIPOSTO More informationQuantity required : 1 |
||||||
|
1 |
977831 - SELLA BIPOSTO More informationQuantity required : 1 |
||||||
|
2 |
GU05570230 - PANNEAU LATERAL DROIT BRUT More informationQuantity required : 1 |
||||||
|
2 |
GU0557023000XE4 - FLANC DRT. More informationQuantity required : 1 |
||||||
|
2 |
GU05570230BM - AILE D, BLANC More informationQuantity required : 1 |
||||||
|
2 |
GU05570232 - FLANC D, NOIR More informationQuantity required : 1 |
||||||
|
3 |
890517 - JOINT CONVOYEUR G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
4 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 2 |
||||||
|
5 |
883496 - FIANCATINA SX GREZZA More informationQuantity required : 1 |
||||||
|
5 |
88349600BM - FIANCATINA SX BIANCO More informationQuantity required : 1 |
||||||
|
5 |
88349600XE4 - FIANCATINA SX SILVER CROWD More informationQuantity required : 1 |
||||||
|
5 |
88349600Y02 - *FIANCATINA SX NERA More informationQuantity required : 1 |
||||||
|
6 |
GU05466830 - SERRURE SELLE More informationQuantity required : 1 |
||||||
|
7 |
AP8102914 - CABLE SERRURE More informationQuantity required : 1 |
||||||
|
8 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
|
9 |
GU98370625 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
11 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
|
12 |
AP8102502 - CABLE ACCROCHAGE CASQUE; More informationQuantity required : 1 |
||||||
|
13 |
GU05573830 - DECALCO PROTECT. FLANC DTE More informationQuantity required : 1 |
||||||
|
14 |
GU05573831 - DECALCO PROTECT. FLANC GCHE More informationQuantity required : 1 |
||||||
|
15 |
GU32461810 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
16 |
AP8126702 - CAOUTCHOUC APPUI SELLE; More informationQuantity required : 10 |
||||||
|
17 |
88698100Y02 - COPERTURA SELLA NERO More informationQuantity required : 1 |
||||||
|
17 |
977754 - COPERTURA SELLA GREZZA More informationQuantity required : 1 |
||||||
|
17 |
97775400XE4 - COPERTURA SELLA SILVER 1200 SPORT 4V More informationQuantity required : 1 |
||||||
|
17 |
97775400Y02A - COPERTURA SELLA NERA 1200 SPORT 4V More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
18 |
GU98370616 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
19 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
