Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada S Anniversario 750 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

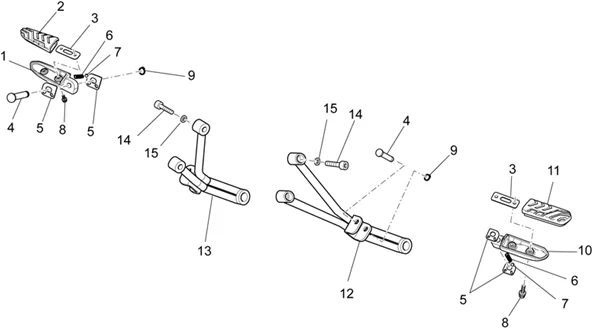

Chassis : 33.05 R-PIED PASS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/505/Nevada_S_Anniversario_750_2012_33.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/1/4/img/203314.jpg)
1 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
|
1 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
|
1 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/5/img/73475.jpg)
2 |
FOOTREST RUBBER "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
3 |
FOOTREST PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -GU32441210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
4 |
AP8121566 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
5 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
6 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
7 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
AP8152277 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
9 |
AP8152409 - ANNEAU D'ARR?T RAD. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/9/9/img/49899.jpg)
10 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER 2007>900 SHIVER 2017>, 900 DORSODURO2017>, 125 TUONO 2017>, 650 PEGASO 2005>, 1200 CAPONORD 2014>, 850 MANA 2007> -AP8145009 More informationQuantity required : 1 |
||||||
|
10 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" APRILIA 750 SHIVER 2007>900 SHIVER 2017>, 900 DORSODURO2017>, 125 TUONO 2017>, 650 PEGASO 2005>, 1200 CAPONORD 2014>, 850 MANA 2007> -AP8145009 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/6/img/73476.jpg)
11 |
RUBBER FOR LEFT FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443211 More informationQuantity required : 1 |
||||||
12 |
883019 - SUPPORTO PEDANE PASSEG SX CON PI More informationQuantity required : 1 |
||||||
|
13 |
883015 - SUPPORTO PEDANE PASSEG DX CON PI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
14 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
15 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901 More informationQuantity required : 4 |
