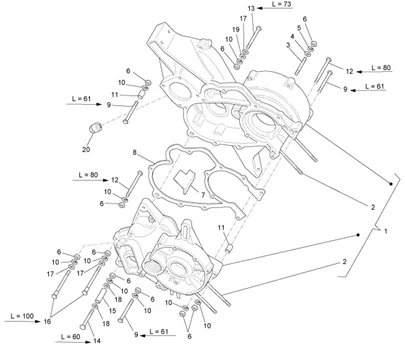

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.05_20251008101150.PNG)
1 |
2883555 CARTER MOTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
016058 - GOUJON S01605800 Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
4 |
RONDELLE PLATE (7X12.7.1) ORIGINE PIAGGIO COMMUN A LA GAMME -003057 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
5 |
RONDELLE GROWER (6,7X12X1.9) ORIGINE PIAGGIO COMMUN A LA GAMME -016407 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
6 |
ECROU (M7X5.5) DE CULASSE ORIGINE PIAGGIO TRIPORTEUR APE 50/ VESPA PX 125 -020107 Plus d'informationsQuantité requise : 20 |
||||||
|
7 |
126018 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
878443 JOINT DEMI CARTER Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
008327 BOULON S00832700 Plus d'informationsQuantité requise : 7 |
||||||
|
10 |
RONDELLE GROWER (6,7X12X1.9) ORIGINE PIAGGIO COMMUN A LA GAMME -016407 Plus d'informationsQuantité requise : 20 |
||||||
|
11 |
005437 TUBE S00543700 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/2/img/63852.JPG)
12 |
BOULON DE CARTER MOTEUR ORIGINE PIAGGIO 125 VESPA PX (7X80) - 008419 Plus d'informationsQuantité requise : 3 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/7/1/img/110571.JPG)
14 |
BOULON SERRAGE (7X60) ORIGINE PIAGGIO -015561 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
005433 GOUJON S00543300 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/6/0/img/113260.jpg)
16 |
VIS DE CARTER MOTEUR ORIGINE PIAGGIO TRIPORTEUR APE TM703 ESSENCE -008415 Plus d'informationsQuantité requise : 4 |
||||||
|
17 |
077713 RONDELLE Plus d'informationsQuantité requise : 6 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
19 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
235218 BOUCHON Plus d'informationsQuantité requise : 1 |
