Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 220CC 2T 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

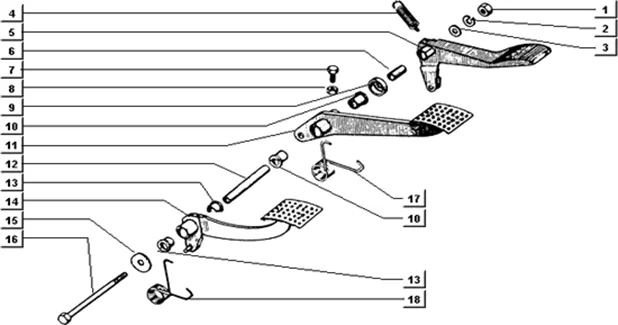

Transmisisons : T79 PEDALIER (P703V)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/328/APE_TM_703_220CC_2T_1997-1999_T79_20251008092447.PNG)
1 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -B011531 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -B011531 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
2 |
RONDELLE EVENTAIL ( 8.3X14) ORIGINE PIAGGIO COMMUN A LA GAMME -012540 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
3 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
125354 RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
253301 PEDALE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
1253554 ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
7 |
VIS TH (6X15) ORIGINE PIAGGIO COMMUN A LA GAMME -031087 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
8 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -020206 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
125344 RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
116310 DOUILLE Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
253288 - PEDALE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
|
||||||
|
12 |
ENTRETOISE |
||||||
|
13 |
125352 BAGUE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
253297 PEDALE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
118563 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
030088 - VIS S03008800 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
125353 RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
137113 RESSORT Plus d'informationsQuantité requise : 1 |
