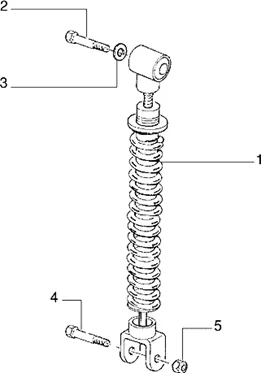

Suspensions-roues : T32 AMORTISSEUR AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T32.PNG)
1 |
56471000E1 - AMORTISSEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
2 |
VIS TH (10X45) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015578 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
3 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
4 |
VIS BRIDE TH (10X55) FIXATION AMORTISSEUR ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -268158 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
