Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

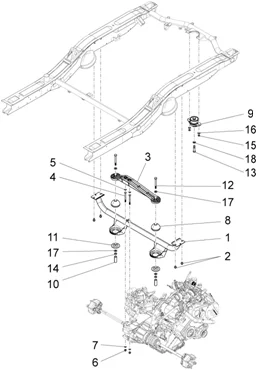

Châssis - parties plastiques - carrosseries : 02.05 SUPPORTS MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/333/Quargo_2007-2015_02.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/5/8/img/121558.jpg)
1 |
ENGINE SUPPORT CROSS MEMBER "PIAGGIO GENUINE PART" CARGO -615654- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/7/img/110387.jpg)
2 |
D9166160820 - BOULON More informationQuantity required : 4 |
||||||
3 |
613706 - TRAVERSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/9/img/65619.jpg)
4 |
030084 - BOULON More informationQuantity required : 2 |
||||||
|
5 |
ARRET |
||||||
|
6 |
002418 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/7/img/115177.jpg)
8 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO 400 APE, CLASSIC, CALESSINO -265091 More informationQuantity required : 2 |
||||||
|
9 |
644507 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/1/img/114961.jpg)
10 |
219299 - ENTRETOISE T1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/9/2/img/111992.jpg)
11 |
218758 - ENTRETOISE T1 More informationQuantity required : 2 |
||||||
|
12 |
015582 - VIS S01558200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/6/7/img/112667.jpg)
13 |
D9004101583 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
14 |
231370 - ECROU More informationQuantity required : 2 |
||||||
|
15 |
272176 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
16 |
002383 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/8/img/110228.jpg)
18 |
D9451101200 - RONDELLE More informationQuantity required : 1 |
