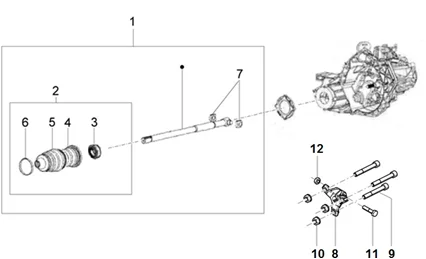

Vehicle Exploded View - PIAGGIO VU QUARGO 0 2007-2015 PIAGGIO VU

Moteur : 01.28 TRANSMISSION ARRIÈRE
Transmission arrière
Search
DRIVE SHAFT "PIAGGIO GENUINE PART" CARGO -850516-

1
P2R reference P2R reference 123175
Maker reference Maker reference 850516

DRIVE SHAFT "PIAGGIO GENUINE PART" CARGO -850516-

More information

Quantity required : 2

DRIVE SHAFT "PIAGGIO GENUINE PART" CARGO -850516-

2
P2R reference P2R reference 123175
Maker reference Maker reference 850516

DRIVE SHAFT "PIAGGIO GENUINE PART" CARGO -850516-

More information

Quantity required : 2

850517 - BAGUE

3
P2R reference P2R reference 117833
Maker reference Maker reference 850517

850517 - BAGUE

More information

Quantity required : 2

646399 - CUFFIA

4
P2R reference P2R reference 114556
Maker reference Maker reference 646399

646399 - CUFFIA

More information

Quantity required : 2

646400 - CUFFIA

5
P2R reference P2R reference 114865
Maker reference Maker reference 646400

646400 - CUFFIA

More information

Quantity required : 2

850125 - COLLIER

6
P2R reference P2R reference 111596
Maker reference Maker reference 850125

850125 - COLLIER

More information

Quantity required : 2

850124 - PATTINO

7
P2R reference P2R reference 114411
Maker reference Maker reference 850124

850124 - PATTINO

More information

Quantity required : 2

CARDAN TRIPOD "PIAGGIO GENUINE PART"PIAGGIO CARGO DIESEL -644511

8
P2R reference P2R reference 117442
Maker reference Maker reference 644511

CARDAN TRIPOD "PIAGGIO GENUINE PART"PIAGGIO CARGO DIESEL -644511

More information

Quantity required : 1

646139 - VIS

9
P2R reference P2R reference 111400
Maker reference Maker reference 646139

646139 - VIS

More information

Quantity required : 6

NUT - "PIAGGIO GENUINE PART" -261319

10
P2R reference P2R reference 66047
Maker reference Maker reference 261319

NUT - "PIAGGIO GENUINE PART" -261319

More information

Quantity required : 6

SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578

11
P2R reference P2R reference 65382
Maker reference Maker reference 0155785

SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578

More information

Quantity required : 2

231370 - ECROU

12
P2R reference P2R reference 65965
Maker reference Maker reference 231370

231370 - ECROU

More information

Quantity required : 2
