Eclatés de véhicule - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

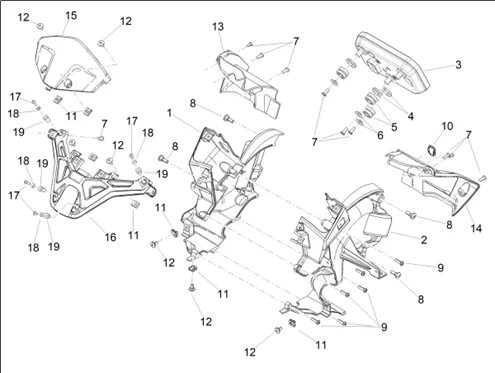

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_08.02.png)
1 |
2B013089 - SUPPORT DE TABLEAU DE BORD D Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B013090 - SUPPORT DE TABLEAU DE BORD G Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B013090 - SUPPORT DE TABLEAU DE BORD G Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B014518 - DOUILLE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
CAOUTCHOUC SILENBLOC ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8220150 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
6 |
RONDELLE EN T (6) ORIGINE PIAGGIO COMMIN A LA GAMME -AP8121991 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
7 |
VIS BTR TETE BOMBEE (5X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152270 Plus d'informationsQuantité requise : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329 Plus d'informationsQuantité requise : 6 |
||||||
|
10 |
2B008462 USB SOCKET CAP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
11 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462 Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
12 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500 Plus d'informationsQuantité requise : 7 |
||||||
|
13 |
2B008049 RIGHT INTERNAL COVER Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
2B008048 LEFT INTERNAL COVER Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
2B013088 - PROT.TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
2B008077 WINDSCREEN SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
17 |
VIS BTR TETE BOMBEE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -581957 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
18 |
RONDELLE NYLON/PLASTIQUE (D4) ORIGINE PIAGGIO COMMUN A LA GAMME -895916 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
19 |
CAOUTCHOUC AVEC INSERT (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144564 Plus d'informationsQuantité requise : 4 |
