Eclatés de véhicule - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

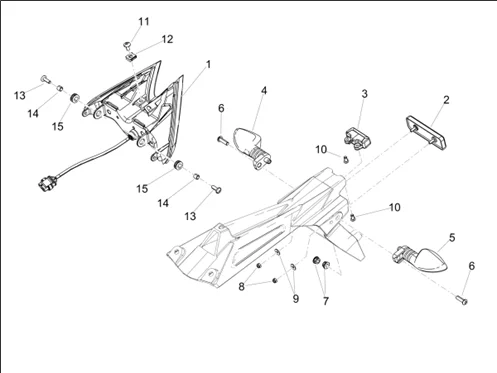

Feux - instruments : 08.03 ECLAIRAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_08.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/6/1/img/187261.jpg)
1 |
FEU ARRIERE ORIGINE APRILIA 660-1100 RS, RSV4, TUONO 2021>-2D000692 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
2 |
AP8112916 - CATADIOPTRE FEU ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
3 |
2D000284 - LUMIERE PLAQUE IMMATR. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/9/4/img/212794.jpg)
4 |
CLIGNOTANT ARRIERE DROIT ORIGINE APRILIA RS 457 -2B010224 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/9/5/img/212795.jpg)
5 |
CLIGNOTANT ARRIERE GAUCHE ORIGINE APRILIA RS 457 2024-2B010223 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
6 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152137 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
8 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
9 |
RONDELLE PLATE (4.3X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150501 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
2B002146 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
11 |
VIS BTR (5X12) DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI V7-V9 -896174 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
12 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
13 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
14 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
15 |
CAOUTCHOUC PASSE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8220186 Plus d'informationsQuantité requise : 2 |
