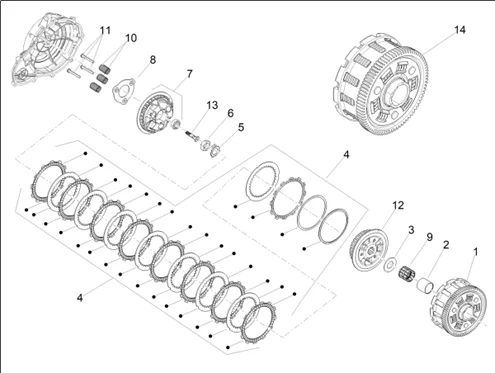

Moteur : 03.23 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_03.23.png)
1 |
1A028799 - CLOCHE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
873543 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1A028824 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1A029056 - SERIE DISQUES DA€-EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1A018089 WASHER Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
876790 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1A028815 - PLATEAU D'EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A028822 - SUPPORT RESSORT A LAMES Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
974361 - CAGE A AIGUILLE 35X40X35,8 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
1A028819 - RESSORT EMBRAYAGE Plus d'informationsQuantité requise : 3 |
||||||
|
11 |
1A021366 - VIS CYLINDRIQUE Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
1A028809 - MOYEU EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
2A001091 ENCLIQUETAGE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1A026557 - EMBRAYAGE COMPLET Plus d'informationsQuantité requise : 1 |
