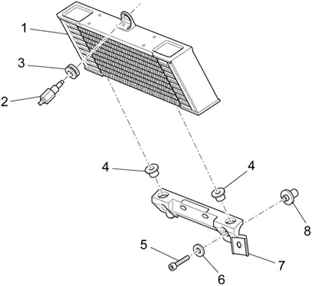

Chassis : 33.25 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_33.25.PNG)
1 |
GU05162031 - RADIATEUR HUILE CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU05164630 - VIS SPECIALE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU91551010 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
4 |
SILENTBLOC/CAOUTCHOUC EN T ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101372 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
5 |
VIS BTR (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680340 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU95005306 - RONDELLE 6,4X13X1,5 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
883494 - SUPPORTO RADIATORE/CLAXON Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU91120622 - BAGUE 6,2X11X22,5 Plus d'informationsQuantité requise : 2 |
