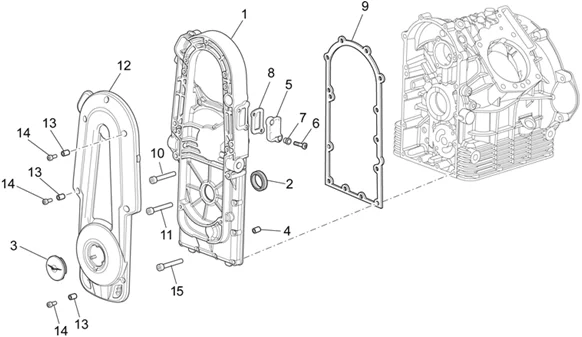

Moteur : 34.44 CARTER II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_34.44.PNG)
1 |
976480 - COPERCHIO DISTRIBUZIONE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/0/img/132200.jpg)
2 |
JOINT SPI (22X35X7) DE CARTER DISTRIBUTION MOTO-GUZZI 1400 CALIFORNIA, 850-1200 BREVA, STELVIO, NORGE -GU90412237 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU05002130 - BOUCHON * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
4 |
GOUJON CALIBRE 11.8X10 ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI ET LES MAXISCOOTER 400-500 CC -825597 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
976554 - TAPPO BLOW-BY FLANGIA DISTRIBUZIONE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU98682320 - VIS M6X20 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU91120607 - BAGUE 6,4X8,4X10,5 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
8 |
JOINT TORIQUE (34.65X1.78) ORIGINE PIAGGIO COMMUN A LA GAMME -177408 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/4/img/99854.jpg)
9 |
JOINT COUVERCLE DE DISTRIBUTION ORINE MOTO GUZZI 1200-1400 AUDACE, CALIFORNIA, GRISO, NORGE, STELVIO -976478 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
10 |
VIS BTR (8X55) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150046 Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
GU98682330 - VIS M6X30 Plus d'informationsQuantité requise : 9 |
||||||
|
12 |
GU05001630 - COUVERCLE ALTERNATEUR GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU91120606 - BAGUE 6,8X8,8X5,8 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
14 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98682316 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
15 |
VIS BTR (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150285 Plus d'informationsQuantité requise : 1 |
