Eclatés de véhicule - MOTO GUZZI SPORT 1200 8V 2008-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

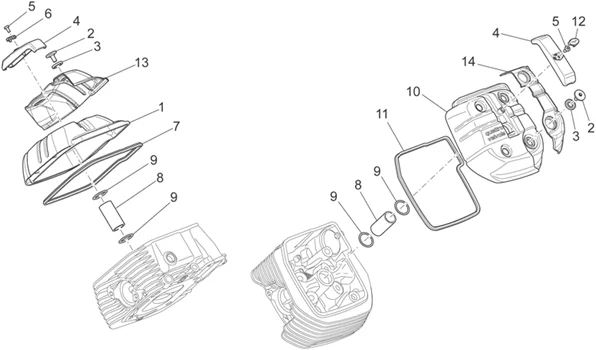

Moteur : 34.46 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_34.46.PNG)
1 |
872607 - COPERCHIO TESTA DX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
2 |
VIS DE CACHE CULBUTEURS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -976591 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
3 |
JOINT DE VIS COUVERCLE DE CULASSE ORIGINE PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO -830249 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/6/6/1/img/98661.jpg)
4 |
COUVERCLE DE BOUGIE ORIGINE PIAGGIO MOTO-GUZZI 1200 BREVA, NORGE, STELVIO, SPORT -883493 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
5 |
VIS BTR TETE BOMBEE (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98230510 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
DECO "MOTO-GUZZI" DE COUVRE CULASSE DROIT ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, SPORT, BREVA -976560- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/3/img/98323.jpg)
7 |
JOINT DE COUVRE CULASSE DROIT ORIGINE PIAGGIO POUR MOTO-GUZZI 1200 NORGE, GRISO, STELVIO, SPORT, 1400 CALIFORNIA, ELDORADO, AUDACE -872742 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
873668 - TUBO CANDELA Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/3/0/img/98330.jpg)
9 |
JOINT TORIQUE PUIT DE BOUGIE (26X2.5) ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA -873626 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/6/img/98316.jpg)
10 |
COUVRE CULASSE GAUCHE ORIGINE PIAGGIO MOTO-GUZZI 1200 STELVIO, GRISO, SPORT 2008>2013 -872606 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/2/img/98322.jpg)
11 |
JOINT DE COUVRE CULASSE GAUCHE ORIGINE PIAGGIO POUR MOTO-GUZZI 1200 NORGE, GRISO, STELVIO, SPORT, 1400 CALIFORNIA, ELDORADO, AUDACE -872741 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
DECO "MOTO-GUZZI" DE COUVRE CULASSE DROIT ORIGINE PIAGGIO MOTO-GUZZI 1200 NORGE, STELVIO, SPORT, BREVA -976559- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/3/2/img/98332.jpg)
13 |
GARNITURE DE COUVERCLE DE CULASSE DROIT ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT -873654 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/2/1/img/98321.jpg)
14 |
GARNITURE DE COUVERCLE DE CULASSE GAUCHE ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT -872740 Plus d'informationsQuantité requise : 1 |
