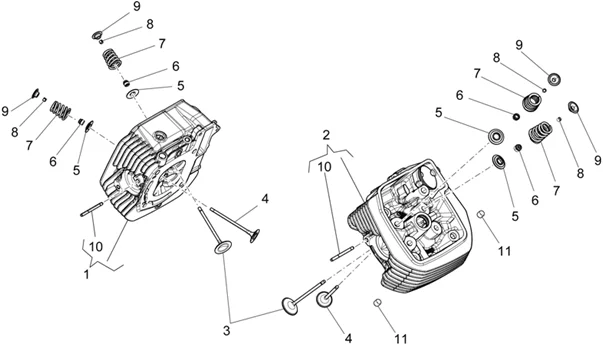

Moteur : 34.45 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_34.45.PNG)
1 |
8808254 - TESTA DX CON PI (ERA 880825) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/2/1/img/98421.jpg)
2 |
CULASSE MOTO GAUCHE ORIGINE PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, STELVIO -8808221 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
872695 - VALVOLA ASPIRAZIONE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/9/img/98319.jpg)
4 |
SOUPAPE ECHAPPEMENT ORIGINE MOTO-GUZZI 1200-1400 (MOTEUR HUIT SOUPAPES) -872696 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
874127 - SCODELLINO INFERIORE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
6 |
JOINT/BAGUE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME -436438 Plus d'informationsQuantité requise : 8 |
||||||
|
7 |
82976R - RESSORT DE SOUPAPE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
8 |
DEMI-LUNE/CLAVETTE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -285846 Plus d'informationsQuantité requise : 8 |
||||||
|
9 |
874126 - SCODELLINO SUPERIORE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
10 |
GOUJON (8X46) ORIGINE PIAGGIO MULTI-USAGE COMMUN LA GAMME -1A003632R Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
11 |
GOUJON CALIBRE 11.8X10 ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI ET LES MAXISCOOTER 400-500 CC -825597 Plus d'informationsQuantité requise : 8 |
