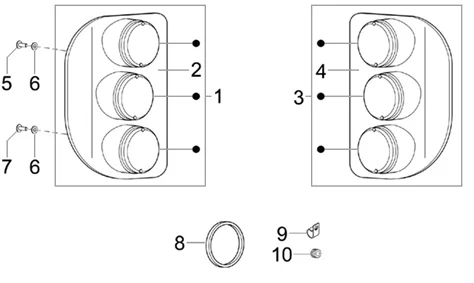

Installation électrique : 06.04 ECLAIRAGES ARRIERE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_06.04_20251008090547.PNG)
1 |
661975 FEU AR CPLT G Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
B002274 - FEU ARR GAUCHE BLANCHE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
661974 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
B002273 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
661976 FEU AR CPLT D Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
B002275 - FEU DROIT ARRIERE BLANC Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
661974 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
B002273 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
5 |
VIS AUTOFOREUSE (4,2X9,5) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -015900 Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
003055 - RONDELLE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
7 |
VIS AUTOTARAUDEUSE (4.2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -015911 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
TAMPON |
||||||
|
9 |
PLAQUE |
||||||
|
10 |
PASSE CABLES |
