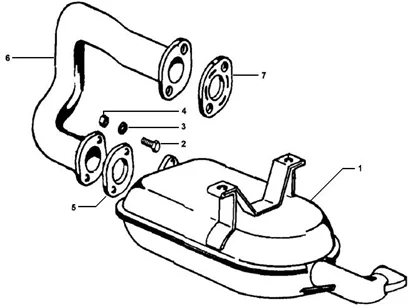

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_01.42_20251008090044.PNG)
1 |
ECHAPPEMENT |
||||||
|
2 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
3 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
4 |
ECROU (M8X6,5) ORIGINE PIAGGIO COMMUN A LA GAMME -020108 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/4/img/113934.jpg)
5 |
430689 JOINT ECHAPPEMENT (ECHAPPEMENT) ADT-1T Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
L9543113 TUYAU ECHAPP. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/9/img/113939.jpg)
7 |
430690 JOINT ECHAPPEMENT (CYLINDRE) ATD-1T Plus d'informationsQuantité requise : 1 |
