Eclatés de véhicule - PIAGGIO VU APE CALESSINO 200 Ape Calessino 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

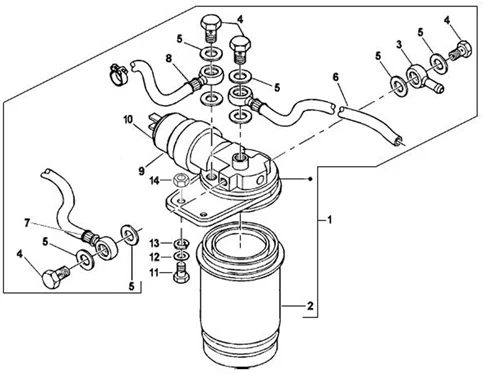

Parties plastiques-carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_02.53_20251008090355.PNG)
1 |
613199 DISPOSITIF FILTRAGE CARBURANT PIAGGIO APE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/8/1/img/120381.jpg)
2 |
FILTRE A GAZ-OIL ORIGINE PIAGGIO TRIPORTEUR APE CLASSIC 2006>, CALESSINO 2007>2012, TM 703 DIESEL 1997>2012, PORTER 1400CC 1998>2005 -493290 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
568185 RACCORD Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
493054 BOULON M 10 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/5/8/img/109958.jpg)
5 |
JOINT CUIVRE ALIMENTATION ORIGINE PIAGGIO TRIPORTEUR APE CALESSINO 2007>2012/CLASSIC 2006>2013 -493123 Plus d'informationsQuantité requise : 12 |
||||||
|
6 |
613198 TUYAU CARB. Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
614939 TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
614938 TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
568721 RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
493542 - ELETTROMAGN** Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
632247 VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
12 |
RONDELLE PLATE (10,4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -016626 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
13 |
RONDELLE GROWER (10.6X17.6X5) ORIGINE PIAGGIO COMMUN A LA GAMME -016410 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/7/img/65477.jpg)
14 |
ECROU (10 EP 5.9) ORIGINE PIAGGIO COMMUN A LA GAMME -020210 Plus d'informationsQuantité requise : 2 |
