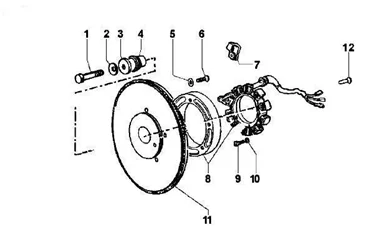

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/324/Ape_Calessino_2007-2012_01.21_20251008085921.PNG)
1 |
232187 VIS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
246013 RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
223492 CONO Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
826676 MANCETTA Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
L1157344 - VOLANT MAGNETIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
L9881376 VOLANT MAGNETIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
850575 CACHE Plus d'informationsQuantité requise : 3 |
