Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

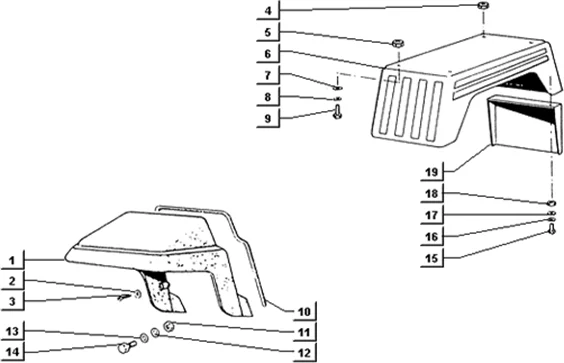

Châssis : T41 GARDEDOUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T41_20251008091244.PNG)
1 |
565799 GARDE BOUE TM 703 * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
2 |
VIS PARKER CRUCIFORME (3,5X9,5) ORIGINE PIAGGIO COMMUN A LA GAMME -008432 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
3 |
RONDELLE PLATE (4.3X8X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -003054 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/3/img/65813.jpg)
4 |
ECROU (M12X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -191962 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
5 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/7/3/img/117273.jpg)
6 |
GARDE BOUE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 1989>2007 -261371 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
565798 GARDE BOUE AR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
7 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 8 |
||||||
|
8 |
016667 RONDELLE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
9 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/0/2/img/114002.jpg)
10 |
JOINT DE GARDE BOUE AVANT ORIGINE PIAGGIO TRIPORTEUR APE TM703 -216170 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020006 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
12 |
RONDELLE RESSORT (6,4X16X1) ORIGINE PIAGGIO COMMUN A LA GAMME -078307 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
13 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
14 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 4 |
||||||
|
15 |
|
||||||
|
16 |
003055 - RONDELLE Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
17 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
18 |
ECROU M5 ORIGINE PIAGGIO COMMUN A LA GAMME -020105 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/2/3/img/115723.jpg)
19 |
BAVETTE ARRIERE ORIGINE TRIPORTEUR APE TM 703 -189137 Plus d'informationsQuantité requise : 2 |
