Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

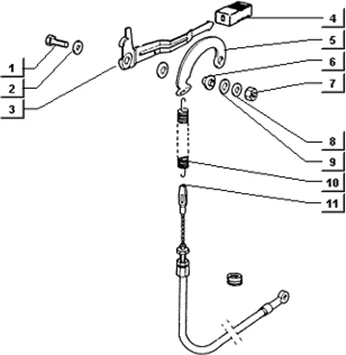

Transmisisons : T71 TRANSMISSIONS COMMANDE M.A
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T71_20251008091118.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
1 |
VIS TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -031090 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
2 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 1 |
||||||
3 |
254230 - LIEVER COMMANDE VITESSE ARR ATM-T1 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
LEVIER MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 1989> -1E004541 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/3/0/img/111930.jpg)
4 |
POIGNEE RECOUVREMENT LEVIER DE MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 -213686 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/7/2/img/114072.jpg)
5 |
LEVIER TRANSMISSION MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 -213683 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
ENTRETOISE |
||||||
|
6 |
DOUILLE ORIGINE PIAGGIO COMMANDE MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 (GUIDON) -B007811 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
7 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -012138 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
7 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
8 |
RONDELLE PLATE (6,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -013950 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/0/0/img/111100.jpg)
10 |
RESSORT COMMANDE DE MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703 1989> -246509 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/1/3/img/117813_20251023145330.jpg)
11 |
CABLE/COMMANDE/TRANSMISSION DE MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703 1989> -266596 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/1/img/66001.jpg)
12 |
BOUTON MARCHE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703 1997>2016 -252166 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/4/img/65824.jpg)
13 |
ECROU CONTACTEUR STOP ORIGINE PIAGGIO TRIPORTEUR APE TM 703, PORTER, CARGO 2020< -196750 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/6/img/65706.jpg)
14 |
RONDELLE RESSORT (12.8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -118745 Plus d'informationsQuantité requise : 1 |
