Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

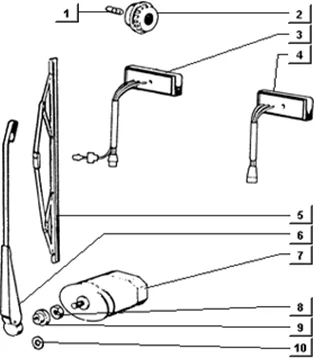

Connexions électriques : T83 ESSUIE-GLACE PLAFONNIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T83_20251008090636.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
1 |
AMPOULE/LAMPE 12V 4W BA9S ORIGINE PIAGGIO COMMUN A LA GAMME -163015 Plus d'informationsQuantité requise : 1 |
||||||
2 |
214773 - FEU CABINE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
581369 INTERRUPTEUR LUMIERE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
581370 R.A.W. INTERRUPTEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/7/1/img/114671.jpg)
5 |
ESSUIE GLACE ORIGINE PIAGGIO TRIPORTEUR APE 50 2T, CAR, POKER, TM 703, P501, P601 -438013 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
164924 BRAS Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
230124 BRAS EG * Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
MOTEUR ESSUIE GLACE ORIGINE PIAGGIO TRIPORTEUR APE CAR, TM 703 2007< -140925 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
ECROU FIX MOTEUR EG |
||||||
|
9 |
CAPUCHON (BOSCH) |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
10 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 1 |
