Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

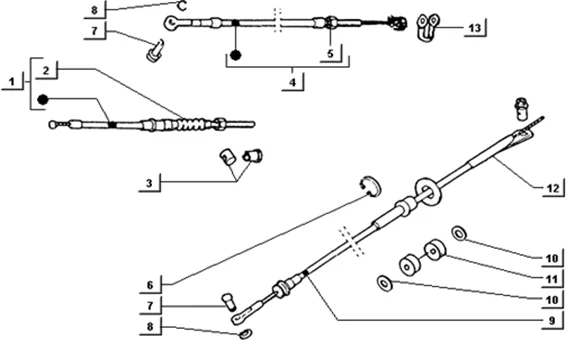

Transmisisons : T68 TRANSMISSIONS (P703)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T68_20251008091109.PNG)
1 |
177150 CABLE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
611638 CACHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/9/img/66349.jpg)
3 |
ECROU DE REGLAGE CABLE EMBRAYAGE ORIGINE PIAGGIO TRIPORTEUR APE COMMUN A LA GAMME -402384 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
177128 CABLE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
020207 - ECROU S02020700 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
6 |
CLIPS/CIRCLIPS ORIGINE PIAGGIO COMMUN A LA GAMME -005970 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
177133 - AXE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
8 |
CLIPS/CIRCLIPS DIAMETRE 5MM ORIGINE PIAGGIO COMMUN A LA GAMME -005965 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
CABLE/COMMANDE/TRANSMISSION DE BOITE DE VITESSE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703 1989> AVEC GUIDON -197097 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
197101 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
197100 SILENTBLOC Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
193836 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
133439 ELEMENT Plus d'informationsQuantité requise : 1 |
