Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

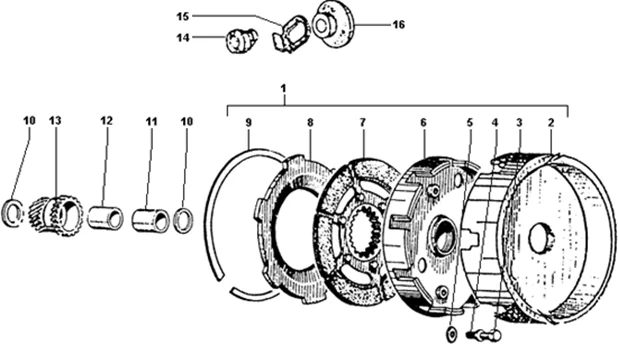

Moteur : T9 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T9_20251008091012.PNG)
1 |
EMBRAYAGE COMPLET ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703, CAR -2212475 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1349965 BOITE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
3 |
VIS TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -031092 Plus d'informationsQuantité requise : 3 |
||||||
|
4 |
132637 ENTRETOISE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 3 |
||||||
|
6 |
2224905 DISQUE EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/0/img/151210.jpg)
7 |
1689096 DISQUE ENTRAINEUR Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1677614 DISQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/0/5/img/111405.jpg)
9 |
CLIPS/CIRCLIPS EMBRAYAGE ORIGINE PIAGGIO TRIPORTEUT APE TM703 ESSENCE -144400 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
222488 RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/4/7/img/114647.jpg)
11 |
BAGUE BRONZE EMBRAYAGE ORIGINE PIAGGIO TRIPORTEUR APE TM703 ESSENCE -222487 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/3/3/img/117033.jpg)
12 |
BAGUE/DOUILLE EMBRAYAGE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE CAR P2 1972>1986, P501, P601, TM 703 1989<2016 -222486 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
2224794 ENGRENAGE MOTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
133425 POUSSOIR Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
1451045 PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
144408 NOIX EMB Plus d'informationsQuantité requise : 1 |
