Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

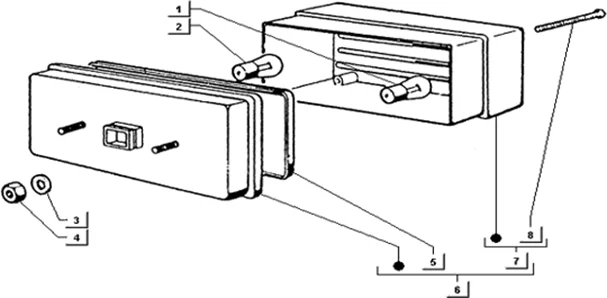

Connexions électriques : T84 FEU AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T84_20251008090640.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
1 |
AMPOULE/LAMPE 12V 21W BA15S/R10 ORIGINE PIAGGIO COMMUN A LA GAMME -160654 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
2 |
AMPOULE/LAMPE 12V 21/5W BAY15D / P21/5 ORIGINE PIAGGIO COMMUN A LA GAMME -129953 Plus d'informationsQuantité requise : 2 |
||||||
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
4 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/2/9/img/119329.jpg)
6 |
FEU ARRIERE DROIT ORIGINE PIAGGIO TRIPORTEUR APE TM 703 1989>2007 -261469 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
FEU ARRIERE GAUCHE ORIGINE PIAGGIO TRIPORTEUR APE TM703 1989>2007 -261470 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
581339 FEU ARD Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
581340 FEU ARG Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
216393 CABOCHON AR G * Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
216396 CABOCHON AR D Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
|
||||||
|
9 |
567840 FEU SUPPORT DE PLAQUE ATM-T1 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
10 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
