Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

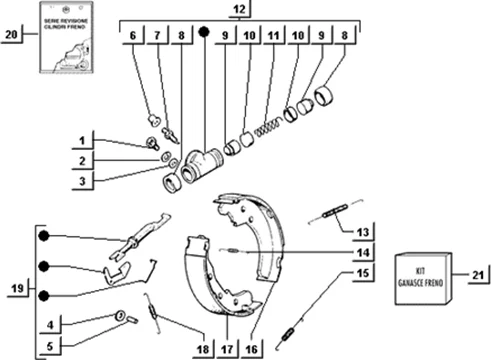

Roues : T55 CYLINDRES FREIN AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T55_20251008091456.PNG)
1 |
030052 - VIS S03005200 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
2 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
4 |
RONDELLE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -230359 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Plug adapter |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
6 |
063435 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
109889 VIS Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
119330 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
PISTON |
||||||
|
10 |
GARNITURE |
||||||
|
11 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/1/3/8/img/121138.jpg)
12 |
CYLINDRE DE ROUE ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE POKER, TM 703 -2451932 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
13 |
RESSORT DE MACHOIRE DE FREIN (112.5) ORIGINE PIAGGIO TRIPORTEUR APE CLASSIC 2006>, APE TM 703 -245038 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/7/img/111587.jpg)
14 |
RESSORT DE MACHOIRE DE FREIN (L 30,5) ORIGINE PIAGGIO TRIPORTEUR APE POKER, TM 703 -225549 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/7/img/111637.jpg)
15 |
RESSORT DE MACHOIRE DE FREIN (L60.5) ORIGINE PIAGGIO TRIPORTEUR APE TM 703, POKER -178750 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/5/1/img/117351.jpg)
16 |
MACHOIRE DE FREIN AVANT ORIGINE PIAGGIO TRIPORTEUR APE TM 703 1997>2016 (VENDU A L'UNITE) -568373 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/8/img/117428.jpg)
17 |
MACHOIRE DE FREIN AVANT/ARRIERE ORIGINE PIAGGIO TRIPORTEUR APE TM 703 1997>2016/CARGO (VENDU A L UNITE) -568372 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
18 |
RESSORT DE MACHOIRE DE FREIN L=69 ORIGINE PIAGGIO TRIPORTEUR APE -178808 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
19 |
GROUPE DE REGLAGE DE JEU DE FREIN ARRIERE GAUCHE ORIGINE PIAGGIO TRIPOREUR APE 7M703 -644326 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
SERIE DE COUPELLES |
||||||
|
21 |
154991 SERIE MACHOIRE FREIN * Plus d'informationsQuantité requise : 1 |
