Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

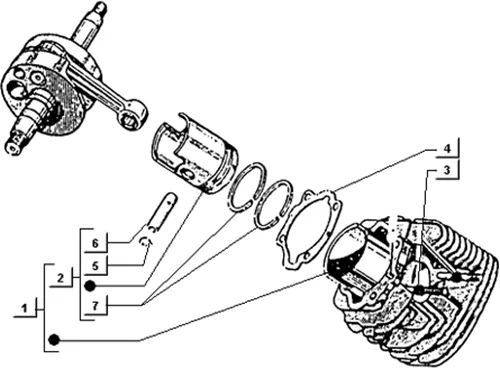

Moteur : T6 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T6_20251008090956.PNG)
1 |
CYLINDRE PISTON ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703, CAR (68MM) -8323495 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1975180001 PISTON 220 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1975180002 GR PISTON CPL CN 220 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1975180003 PISTON CPLT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1975180004 PISTON CPLT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
197523 GR PISTON 1ERE MAJ Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
197524 GR PISTON 2EME MAJ Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
197525 GR PISTON 3EME MAJ Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
003978 GOUJON S00397800 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/1/4/img/111614.jpg)
4 |
JOINT EMBASE DE CYLINDRE ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703, P501, P601 -873212 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/9/9/img/110199.jpg)
5 |
CLIPS/CIRCLIPS DE PISTON (D18) ORIGINE PIAGGIO TRIPORTEUR APE TM 703, P501, P601 -006618 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/9/5/img/112695.jpg)
6 |
AXE DE PISTON ORIGINE PIAGGIO TRIPORTEUR APE TM703 ESSENCE -1363034 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
136339 SEGMENT INF Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
137130 BAGUE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
137131 BAGUE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
137132 BAGUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/2/0/6/img/118206.jpg)
7 |
SEGMENT SUPERIEUR ORIGINE PIAGGIO TRIPORTEUR APE ESSENCE TM 703, CAR P2 -197422 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
197423 SEGMENT 1ER MAJ SUP Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
197424 SEGMENT 2EME MAJ SUP Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
197425 SEGMENT 3EME MAJ SUP Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
|
