Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

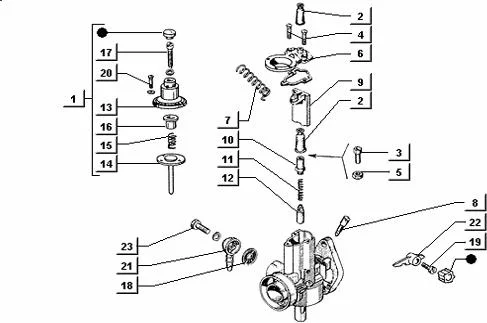

Moteur : T25 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T25_20251008090907.PNG)
1 |
195776 COUVERCLE GAZ Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/7/img/68507.jpg)
2 |
CAPUCHON CAOUTCHOUC DE GAINE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME -813174 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/0/img/72320.JPG)
3 |
AP8222631 - VIS TENDEUR DE FIL Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/6/img/63766.jpg)
5 |
ECROU ( 6X0.75) ORIGINE PIAGGIO COMMUN A LA GAMME -002613 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
195776 COUVERCLE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
093994 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
183062 GIGLEUR Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
195764 SOUPAPE GAZ Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
VALVE |
||||||
|
11 |
195543 RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
195542 SOUPAPE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
195784 COUVERCLE MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
195785 MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
RESSORT MEMBRANE |
||||||
|
16 |
CUVETTE RESSORT |
||||||
|
17 |
195788 VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/9/img/65689.jpg)
18 |
FILTRE A ESSENCE ORIGINE APRILIA 50-125 COMMUN A LA GAMME MOTO 2005</PIAGGIO TRIPORTEUR APE 50, TM 703 ESSENCE -099315 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
PIVOT BALANCIER |
||||||
|
20 |
VIS |
||||||
|
21 |
PIPETTE |
||||||
|
22 |
195772 BALANCIER CDE GAZ Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/5/2/img/71252.jpg)
23 |
VIS FIXATION PIPETTE DE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME-AP8106795 Plus d'informationsQuantité requise : 1 |
