Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

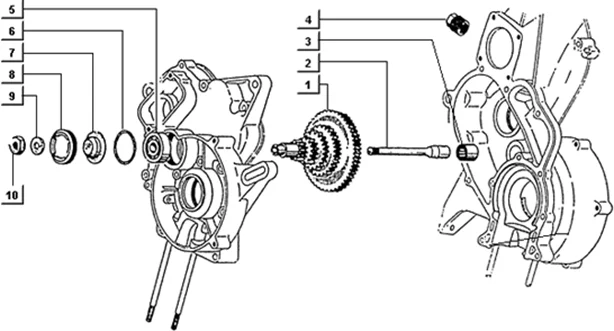

Moteur : T8 ENGRENAGE MULTIPLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T8_20251008091008.PNG)
1 |
1782254 ENGRENAGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1697284 PIVOT ENG MULTIPLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/6/8/img/112868.jpg)
3 |
CAGE A AIGUILLES MOYEU AVANT ORIGINE PIAGGIO TRIPORTEUR APE 50 2T 1998>, TM703 ESSENCE -090457 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
235218 BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/7/img/65627.jpg)
5 |
ROULEMENT (15X42X13) BOITE DE VITESSE ORIGINE PIAGGIO 125 PX VESPA/TRIPORTEUR APE ESSENCE TM 703,CAR, CALESSINO 2007>2012, CLASSIC 2006>2017 -030209 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/2/6/img/112226.jpg)
6 |
JOINT TORIQUE (41X2.62) ORIGINE PIAGGIO COMMUN A LA GAMME -180379 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
159015 GODET Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
0787854 DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
078783 RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
015202 ECROU S01520200 Plus d'informationsQuantité requise : 1 |
