Eclatés de véhicule - PIAGGIO VU APE TM ESSENCE 200 APE TM 703 FL2 220CC 2T 1999-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

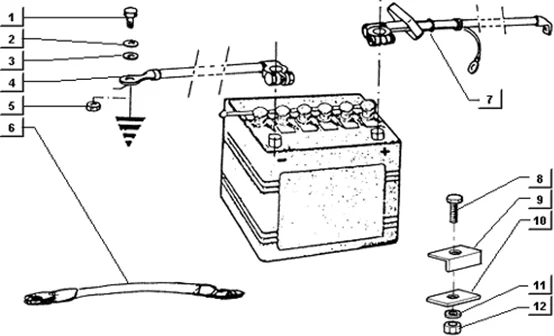

Connexions électriques : T86 CABLE NEGATIF ET POSITIF
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/329/APE_TM_703_FL2_220CC_2T_1999-2004_T86_20251008090645.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
1 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 1 |
||||||
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
2 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
|
||||||
|
4 |
189940 CABLE NEGATIF Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
5 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B025114 CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
189885 CABLE POSITIF Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
290103 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
|
||||||
|
9 |
611610 SQUADRETTA FIS Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
290101 SILENBLOC Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
013755 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 1 |
